QBK Full Burner Control
Permanent operation
Direct ignition up to 350 kW
Available with Aluminum or Plastic enclosure
- 1st stage fuel valve output
- Flame detector input (UV/rod/shared rod)
- 2nd stage fuel valve output
- Air valve output
- Air pressure switch input
- Air control input
- Burner on/off input
- Main burner on/off input
- Remote reset input
- High temperature bypass input
- Burner on output
- Lockout output
- TraxBus remote control
Learn More:
Description Documentation Ordering Information Accessories
Ordering Information
| Model and Description | |
| QBK FULL 115 115, Aluminum Enclosure | |
| QBK FULL 230 230, Aluminum Enclosure | |
| QBK FULL 115 115, Plastic Enclosure | |
| QBK FULL 230 230, Plastic Enclosure |

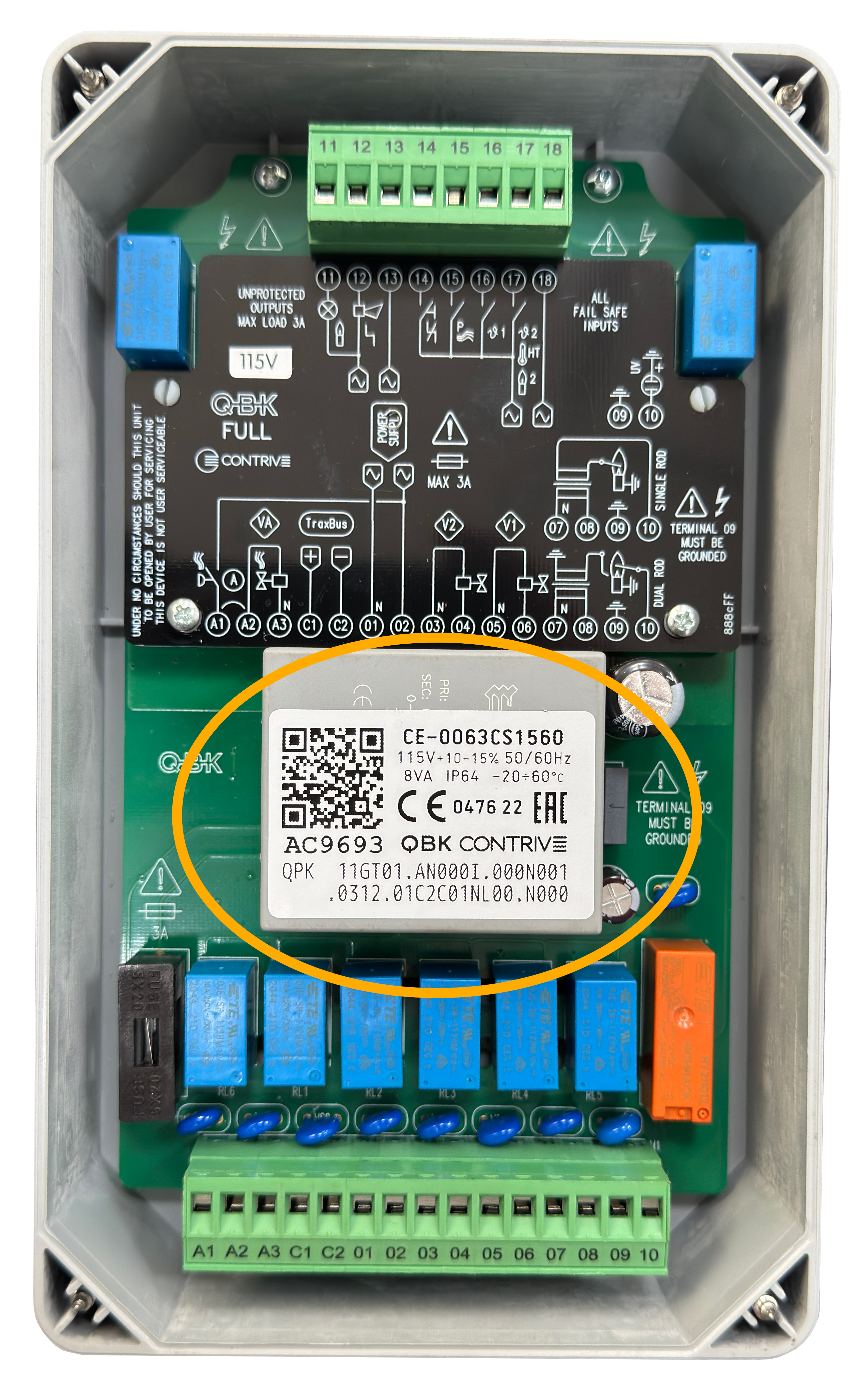

* QBK configuration is required at time of order. Configuration can be found inside the unit, as seen below.
QPK.11GT01.AN000I.000N001.0312.01C2C01NL00.N00
Description
Burner control unit QBK [cubic] is suitable for the control of pilot burners up to 350 kW and main burners of unlimited capacity, pursuant to EN 746-2, for intermittent or continuous operation.
QBK supports flame control via UV scanner or ionization rod (spark-and-sense/single electrode operation is also supported) and high-temperature option for flame surveillance bypass.
The “full” version includes a specific output for air valve or fan, following cycle or independently controllable.
The same device can be used to control different types of gas and oil burners, meeting all relevant requirements.
An LED-bar flame signal indicator and an advanced self-diagnostic system provides the display of cycle status, lockouts and failures.
Remote control and supervision of the burner can be implemented via traditional electrical wiring, or through the built-in communication line.
Please note: QBK does not carry approvals commonly accepted for compliance with NFPA86 (FM, UL, CSA). We strongly advise you to review the product literature and reference the relevant national, regional, and local standards when making product selections.
Documentation
 |
QBK FULL technical information |
|
QBK installation instructions |
Accessories
| Model | Description | Price | Cart |
| TraxGateway.ETH | TraxBus to PROFINET | Contact Us | |
| TraxInterface3.232.A | TraxBus to EIA-RS232 | Contact Us | |
| TraxInterface3.485.A | TraxBus to EIA-RS485 | Contact Us | |
| TraxInterface4.232 | EIA-RS232 to TraxBus or Modbus | Contact Us | |
| TraxInterface4.485 | EIA-RS485 to TraxBus or Modbus | Contact Us | |
| TCU6 | TraxInterface4 6 Zone Controller | Contact Us | |
| TraxGateway.PDP 115 | Interface and protocol converter TraxBus to PROFIBUS-DP; power supply voltage 115 Vac | Contact Us | |
| TraxGateway.PDP 230 | Interface and protocol converter TraxBus to PROFIBUS-DP; power supply voltage 230 Vac | Contact Us | |
| QUID | TraxBus Infrared Address Programmer; USB cable and 115..230Vac charger included | Contact Us | |
| Qbeam.USB-B | QBK infrared USB/OTG interface; USB-B adapter included | Contact Us | |
| Qbeam.USB-C | QBK infrared USB/OTG interface; USB-C adapter included | Contact Us | |
| UV1 | UV flame detector; ¾” burner head connector | Contact Us | |
| UV4H | High performance UV flame detector; ¾” burner head connector | Contact Us |
