TraxGateway.ETH

Description

TraxBus™ is a dedicated fieldbus specifically designed to operate in very harsh environments where electrical noise generated by ignition transformers makes it difficult to operate for any standard physical layer.

PROFINET® is an industry technical standard for data communication over Industrial Ethernet, designed for collecting data from, and controlling equipment in industrial systems, with a particular strength in delivering data under tight time constraints.

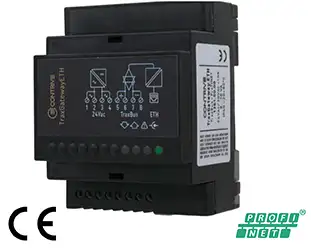

TraxGateway.ETH allows the control, from PROFINET-IO controllers, of up to 99 burners operated by QBK (Burner Control Units) in a TraxBus network.

PROFINET® is a registered trademark of PROFIBUS & PROFINET International (PI).

Procedure

1.Set ZONE and UNIT to be assigned to the QBK device
2. Press the button to put the QBK device in MANUAL SHUTDOWN
3. Point QUID toward the QBK device pushbutton at a distance of 30-60 cm (12-24”)
4. Press the QUID key

If the configuration is successful, the green OK indicator will illuminate. In case of error, the red KO indicator will illuminate.
